Ball Valve, Butterfly Valve, Check Valve, Gate Valve, Knife Gate Valve, Globe Valve, Needle Valve, Pinch Valve. Plug Valve, Pressure Relief Valve, Y Strainer Valve

Valve

Our company Product categories include gate valves, check valves, globe valves, ball valves, plug valves, butterfly valves, general valves, special valves, non-standard valves and valve accessories, etc., and are widely used in petroleum, chemical industry, electric power, mining, metallurgy, steel, coal preparation , alumina, papermaking, pharmaceuticals, sewage treatment and other industries, the products are exported to Southeast Asia, the Middle East, Europe, South America, Africa and other parts of the world.
Get a quote
  • Gate Valve
    • Size : 4" ~60"
    • Pressure Rating: CL150~CL2500.
    • Connection end: FF, RF, RTJ, BW.
    • Body Material: Body Materials Carbon Steel, Stainless Steel, Alloy steel, Duplex SS etc. Optional materials on request.
    • Design Standard: API 600, ASME B16.34
    • Test: API 598, ISO 5208
    • Flange End: ASME B16.5, ASME B16.47
    • Welding End: ASME B16.25
    • Face to Face: ASME B16.10
    • Sour Service: NACE MR 0175
    • Operation: Handwheel, Gear, pneumatic, Electric, etc
    • Application conditions: Gate valves are suitable for most industrial pipeline systems, especially in the case of conveying liquids and steam. The gate valve can be opened and closed quickly, can quickly cut off the flow of fluid and steam, and has good sealing and corrosion resistance. Gate valve is not suitable for: regulating/throttling conditions and easy coking conditions.
    Gate Valve
  • Check Valve

    •Size: 4" ~60"

    •Pressure Rating: CL150-CL2500.

    •Connection end: FF, RF, RTJ, BW.

    •Body Material: Body Materials Carbon Steel, Stainless Steel, Alloy steel, Duplex SS etc. Optional materials on request.

    •Design Standard: BS1868,AP| 594, API 6D

    •Test: AP| 598, ISO 5208

    •Flange End: ASME B16.5, ASME B16.47

    •Welding End: ASME B16.25

    •Face to Face: ASME B16.10

    •Sour Service: NACE MR 0175

    •Application conditions: The check valve can be used in the pipeline of liquid, gas, steam and various corrosive media, and is suitable for the pipeline system in various industries to prevent the reverse flow of the medium.

    Check Valve
  • Globe Valve
    Globe Valve
    • Size: 4" ~24"
    • Pressure Rating: CL150-CL2500.
    • Connection end: FF, RF, RTJ, BW.
    • Body Material: Body Materials Carbon Steel, Stainless Steel, Alloy steel, Duplex SS etc. Optional materials on request.
    • Design Standard: BS1873, API 623, ASME B16.34
    • Test: API 598, ISO 5208
    • Flange End: ASME B16.5, ASME B16.47
    • Welding End: ASME B16.25
    • Face to Face: ASME B16.10,
    • Sour Service: NACE MR 0175
    • Operation: Handwheel, Gear, pneumatic, Electric, etc
    • Application conditions: The globe valve is suitable for a variety of media pipelines, including tap water, chemical fluids, petrochemical, public utilities and other pipeline systems, the globe valve can be cut off and flow/pressure regulation, is usually selected in the convection resistance requirements of the pipe.
    Globe Valve
  • Plug valve
    Body:ASTM   A216-WCB
    ASTM      A351-CF8,CF8M,CF3,CF3M
    Sleeve:PTFE
    Plug:ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316
    Gasket:Flexible graphite+stainless steel,PTFE
    Adjusting gasket :ASTM A182-Gr.F6a ASTM A182-F22
    ASTM A182-F304,F316,F321,F304L,F316
    Cover:ASTM A216-WCB ASTM A351-CF8,CF8M,CF3,CF3M
    Adjusting bolt:ASTM      A193-B7,A193-B8,A193-B8M
    Nut :ASTM A194-2H.A194-8.A194-8N
    Bolt ASTM     :A193-B7,A193-B8,A193-B8M
    Wrench:ASTM   A105-WCB

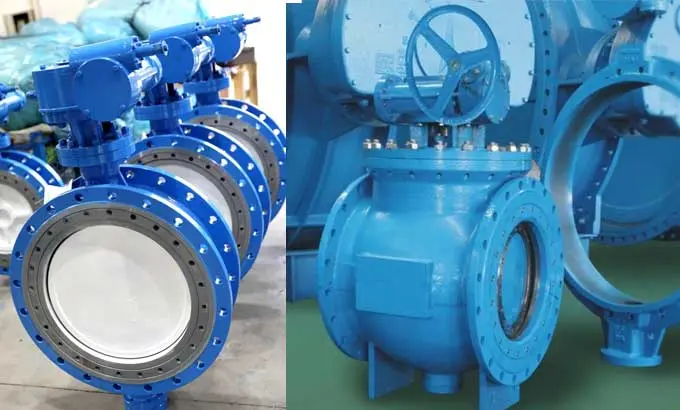

    Plug valve
