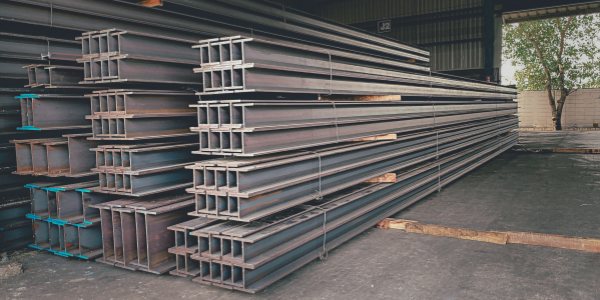

European standard H sections and I beams: sizes, grades and applications

European-standard H sections and I beams are widely used in structural engineering because their cross-sectional geometry provides efficient load-bearing performance while supporting standardized design and procurement.

The supplied technical schedule covers heavy, middle, and light H steel section lines, with different dimensional ranges and EN 10025 steel grades.

Heavy H Sections

The documented heavy H section range includes dimensions up to approximately:

H section: 1000 × 302 mm

Thickness: approximately 12–40 mm

The corresponding material range includes grades such as:

S235JR

S235J0

S235J2

S275JR

S275J0

S275J2

S355JR

S355J0

S355J2

S355K2

The same schedule also covers I-beam products up to approximately 630 × 180 mm, with thickness ranges specified according to the applicable grade and standard.

Middle H Sections

The middle H section range includes sizes up to approximately:

H 400 × 200 mm

The documented thickness range is approximately 6.5–18 mm, depending on the applicable standard and product type.

I beams and C beams are also included within the middle-section product range.

Light H Sections

The light H section range includes:

H 200 × 100 mm

with thicknesses generally within approximately 7–12 mm in the documented range.

The product schedule also covers I beams, C beams and L sections in corresponding dimensional ranges.

Why Section Size Matters

Selecting a structural section should not be based on nominal height alone.

Engineers and buyers should consider:

Section height

Flange width

Web thickness

Flange thickness

Steel grade

Span

Applied load

Connection design

Structural stability

A larger section does not automatically mean a better solution. The section must match the engineering design and loading conditions.

Union Steel Industry Structural Steel Supply

At Union Steel Industry, we can organize structural steel supply according to project-specific requirements, including European standards, steel grade, section type, dimensions and thickness.

For accurate quotation and production planning, customers are encouraged to provide the complete technical specification rather than only the product name.

FAQ

1. What is an H section used for?
Mainly columns, beams, frames, and other load-bearing structures.

2. What is an I beam used for?
I beams are commonly used for structural beams and bending-load applications.

3. What information is needed for an H beam quotation?
Standard, grade, section size, thickness, length, quantity, and delivery requirements.
