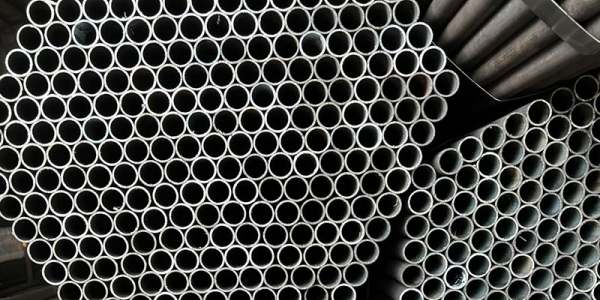

How Seamless Steel Pipes for Boilers and Petrochemical Are Manufactured?

Seamless steel pipes used in boilers, heat exchangers, refineries, and petrochemical plants require strict control throughout the manufacturing process. From steelmaking to final inspection, each production stage directly affects pipe quality, mechanical properties, and service life.

The following production flow illustrates the typical manufacturing process for hot-finished and cold-finished seamless steel pipes.

1. Steelmaking and Secondary Refining

Production starts with molten steel produced in a blast furnace and electric arc furnace.

To improve steel cleanliness and chemical composition control, the molten steel undergoes:

LF (Ladle Furnace) refining

VD/VOD vacuum degassing

This process reduces harmful gases and impurities while ensuring compliance with boiler and petrochemical pipe standards.

2. Continuous Casting

The refined steel is continuously cast into:

Round billets

Square blooms

Square blooms are further processed through a blooming mill before being converted into round billets for seamless pipe production.

3. Billet Preparation and Piercing

The heated round billet is transformed into a hollow shell through advanced piercing mills.

The production line may use:

76 Mannesmann Piercing Mill

A traditional seamless tube piercing process widely used for carbon steel and alloy steel pipes.

114 AccuRoll Piercing Mill

Provides improved dimensional control and wall thickness uniformity.

4. Pipe Rolling

After piercing, the hollow shell enters different rolling mills according to the required pipe size and specification.

140 Mandrel Mill

Suitable for producing high-quality seamless tubes with excellent dimensional accuracy.

325 AccuRoll Mill

Designed for medium and large diameter seamless pipes.

460 PQF Mill

A modern rolling process capable of producing high-performance seamless pipes for demanding industrial applications.

5. Heat Treatment and Bright Annealing

Depending on product requirements, pipes undergo:

Bright Annealing Furnace

Commonly used for stainless steel and precision tubes to improve corrosion resistance and surface finish.

Heat Treatment Furnace

Applied to carbon steel and alloy steel pipes to achieve the required mechanical properties.

6. Cold Drawing or Cold Rolling

For precision boiler tubes and heat exchanger tubes, additional cold processing may be performed.

Benefits include:

Better surface quality

Tighter dimensional tolerances

Improved mechanical performance

This process produces cold-finished seamless tubes and pipes.

7. Straightening

After rolling or heat treatment, pipes pass through a straightening machine to ensure proper alignment and dimensional accuracy.

8. Non-Destructive Testing

Every pipe undergoes rigorous inspection using:

ET (Eddy Current Testing)

UT (Ultrasonic Testing)

MFL (Magnetic Flux Leakage Testing)

MT (Magnetic Particle Testing)

These tests help identify internal and surface defects without damaging the product.

9. Surface and Size Inspection

The finished pipes are inspected for:

Outside diameter

Wall thickness

Length

Surface condition

Dimensional tolerances

10. Mechanical Property Inspection

Before delivery, samples are tested to verify:

Yield strength

Tensile strength

Elongation

Hardness

Only qualified products proceed to shipment.

Final Products

The process produces two main product categories:

Cold Finished Seamless Tubes and Pipes

Features:

Higher dimensional accuracy

Better surface finish

Suitable for boiler tubes and heat exchanger tubes

Hot Finished Seamless Tubes and Pipes

Features:

Larger size range

Excellent mechanical properties

Widely used in petrochemical and power generation projects

FAQ

1. What is the first step in seamless pipe manufacturing?

The process begins with steelmaking, followed by LF and VD/VOD refining.

2. What is the purpose of the piercing mill?

It converts a solid billet into a hollow tube shell.

3. Why is heat treatment important?

Heat treatment improves strength, toughness, and long-term performance.

4. What inspections are performed before delivery?

NDT, dimensional inspection, surface inspection, and mechanical property testing.

5. What is the difference between hot-finished and cold-finished seamless pipes?

Cold-finished pipes provide tighter tolerances and better surface quality, while hot-finished pipes are typically used for larger diameter applications.
