Dimensional accuracy is one of the most important quality indicators for seamless steel pipes used in boilers, heat exchangers, petrochemical plants, refineries, power stations, and pressure piping systems.
Even when the material grade and mechanical properties meet specifications, excessive deviations in outside diameter (OD) or wall thickness can affect installation, welding, pressure performance, and service life.
At Union Steel Industry, seamless steel pipes are manufactured and inspected according to internationally recognized standards including EN, DIN, ASTM/ASME, GB/T, and JIS. This article explains the dimensional tolerance requirements commonly applied to hot-finished and cold-finished seamless steel tubes.
What Are Seamless Pipe Dimensional Tolerances?
Dimensional tolerances refer to the allowable variation between the actual pipe dimensions and the nominal dimensions specified in the standard.
The two most important tolerance categories are:
Outside Diameter (OD) Tolerance
Wall Thickness Tolerance
These tolerances ensure interchangeability, installation compatibility, and compliance with engineering specifications.
Outside Diameter Tolerances for Seamless Steel Pipes
The allowable OD deviation varies depending on the manufacturing process and applicable standard.
In general:
Hot Finished Seamless Tubes
Typical tolerances range from:
±0.75%
±0.90%
Fixed millimeter tolerances depending on pipe size
Because hot-finished pipes are produced at elevated temperatures, dimensional variations are naturally larger than those of cold-finished tubes.
Cold Finished Seamless Tubes
Cold drawing and cold rolling processes provide much tighter dimensional control.
Typical OD tolerances range from:
±0.10 mm
±0.15 mm
±0.20 mm
±0.30 mm
±0.50%
This makes cold-finished tubes ideal for precision applications such as:
Boiler tubes
Heat exchanger tubes
Instrumentation tubing
Mechanical tubing
Outside Diameter Tolerance Reference Table
|
Standard
|
Hot Finished Seamless Tube
|
Cold Finished Seamless Tube
|
|
EN 10216-1 / EN 10216-2
|
±0.75% (OD ≤100 mm), ±0.90% (OD >100 mm)
|
±0.50% (minimum ±0.30 mm)
|
|
DIN 17175
|
±0.75% to ±0.90%
|
±0.50%
|
|
GB/T 3087
|
±0.75%
|
±0.40 mm to ±1.0%
|
|
GB/T 5310
|
±0.40 mm to ±0.75%
|
±0.20 mm to ±0.80%
|
|
GB/T 9948
|
±0.75%
|
±0.30 mm
|
|
GB/T 6479
|
+1%, -2 mm
|
±0.80%
|
|
ASME SA-179M
|
+0.4, -0.8 mm
|
±0.10 mm to ±0.38 mm
|
|
ASME SA-192M
|
+0.4, -0.8 mm
|
±0.10 mm to ±0.38 mm
|
|
ASME SA-209M
|
+0.4, -0.8 mm
|
±0.10 mm to ±0.38 mm
|
|
ASME SA-210M
|
+0.4, -0.8 mm
|
±0.10 mm to ±0.38 mm
|
|
ASME SA-213M
|
+0.4, -0.8 mm
|
±0.10 mm to ±0.38 mm
|
|
JIS G3461
|
+0.4, -1.2 mm
|
±0.10 mm to ±0.38 mm
|
|
JIS G3462
|
+0.4, -1.2 mm
|
±0.10 mm to ±0.38 mm
|
|
ASME SA-106 / SA-335
|
±0.40 mm to ±1.0%
|
±0.40 mm to ±0.79 mm
|
Wall Thickness Tolerances for Seamless Steel Pipes
Wall thickness directly affects the pressure-bearing capability of seamless pipes.
For this reason, standards specify allowable wall thickness deviations according to pipe size and manufacturing process.
Hot Finished Seamless Tubes
Typical wall thickness tolerances include:
±15%
±12.5%
±10%
±9%
Depending on:
Outside diameter
Wall thickness ratio
Product standard
Cold Finished Seamless Tubes
Because cold finishing improves dimensional accuracy, wall thickness tolerances are generally tighter:
±10%
+20%, -0%
+22%, -0%
+15%, -10%
depending on the applicable standard and tube size.
Wall Thickness Tolerance Summary
|
Standard
|
Hot Finished Tube
|
Cold Finished Tube
|
|
DIN 17175
|
±9% to +17.5%/-12.5%
|
±10%
|
|
EN 10216-1 / EN 10216-2
|
±10% to ±20%
|
±10%
|
|
GB/T 3087
|
±12.5% to +15%/-10%
|
+15%/-10%
|
|
GB/T 5310
|
±10% to +15%/-10%
|
+12%/-10%
|
|
GB/T 9948
|
±10% to ±12.5%
|
+12%/-10%
|
|
GB/T 6479
|
±10%
|
±10%
|
|
ASME SA-179M
|
+35%/-0%
|
+20%/-0%
|
|
ASME SA-192M
|
+35%/-0%
|
+20%/-0%
|
|
ASME SA-209M
|
+33%/-0%
|
+22%/-0%
|
|
ASME SA-210M
|
+33%/-0%
|
+22%/-0%
|
|
ASME SA-213M
|
+28%/-0%
|
+22%/-0%
|
|
JIS G3461
|
+28%/-0%
|
As specified
|
|
JIS G3462
|
+28%/-0%
|
As specified
|
|
ASME SA-106
|
±12.5%
|
±10%
|
|
ASME SA-335
|
±12.5%
|
±10%
|
How Union Steel Industry Controls Pipe Tolerances

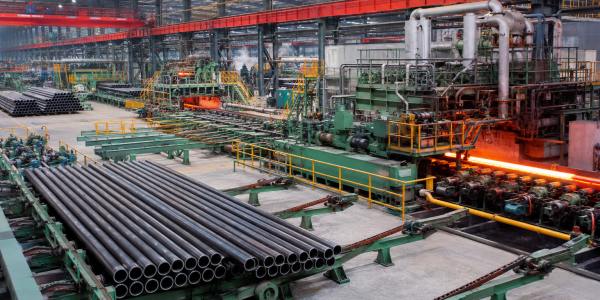

At Union Steel Industry, dimensional control begins during rolling and continues through final inspection.
Our quality control process includes:
Online diameter monitoring
Wall thickness measurement
Straightness inspection
Ultrasonic testing (UT)
Eddy current testing (ET)
Dimensional verification before shipment
Advanced rolling mills and precision measuring equipment help ensure that seamless pipes consistently meet customer specifications and international standards.
Why Tolerance Control Matters
Accurate dimensional tolerances provide several benefits:
Easier installation and welding
Better fit-up with fittings and flanges
Improved pressure performance
Reduced fabrication costs
Compliance with ASTM, ASME, EN, DIN, GB, and JIS standards
For critical boiler and petrochemical applications, strict tolerance control is essential for safe and reliable operation.
Why Choose Union Steel Industry?
Union Steel Industry supplies seamless steel pipes for:
Boilers
Superheaters
Reheaters
Heat exchangers
Petrochemical plants
Refineries
Power stations
Pressure piping systems
With advanced manufacturing equipment, comprehensive inspection capabilities, and strict dimensional control procedures, we deliver seamless steel pipes that meet demanding industrial requirements worldwide.
FAQ
1. What is the standard OD tolerance for seamless steel pipes?
OD tolerance depends on the manufacturing standard and production method, typically ranging from ±0.10 mm to ±1.0%.
2. Are cold-finished tubes more accurate than hot-finished tubes?
Yes. Cold-finished seamless tubes generally offer tighter OD and wall thickness tolerances.
3. Why is wall thickness tolerance important?
Wall thickness directly affects pressure resistance, mechanical strength, and service life.
4. Does Union Steel Industry inspect pipe dimensions before shipment?
Yes. All seamless steel pipes undergo dimensional inspection and quality verification before delivery.
