Product Category

Carbon Steel Pipe

Carbon steel pipe is made from an alloy of iron and carbon. It’s a strong, durable material resistant to corrosion and oxidation. Because of its strength and ability to withstand stress, carbon steel pipe is used in a variety of heavy-duty industries like infrastructure, ships, distillers, chemical fertilizer equipment, and liquids, gases, solids transportation. Union Steel can offer SAWL/LSAW Steel Pipe, SSAH/SSAWSteel Pipe, EFW/ERW Steel Pipe, SMLS Steel Pipe and Hollow Section in standard size or as customer’s requirement.

Product:	ERW，LSAW，SSAW
Application:	Used for Oil/Gas/Water transmission,Machinery Manufacturing
Size:	ERW:OD:21.3-610mm,WT:1.8-22mm
	LSAW:OD:323.9-1820mm,WT:5-50mm
	SSAW:OD:219.1-2540mm,WT:3.2-25.4mm
Pipe Standard:	API 5L PSL1/PSL2 Gr.A,Gr.B,X42,X46,X52,X56,X60,X65,X70
	ASTM A53: GR.A, GR.B, ASTM A500 JIS G3466,ASTM A252 ASTM A178
	AN/NZS 1163 AN/NZS 1074,EN10219-1 EN10217-1,S275, S275JR, S355JRH, S355J2H

VIEW PRODUCTS

carbon steel pipe,erw steel pipe,lasw steel pipe,ssaw steel pipe,smls steel pipe,hollow section

Product Category

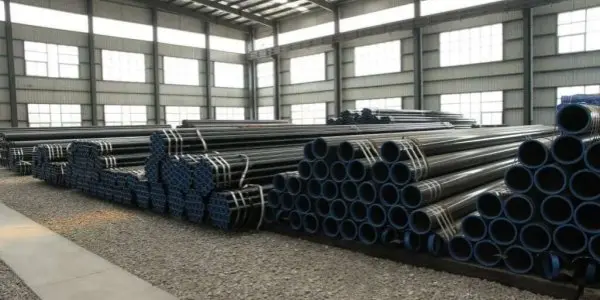

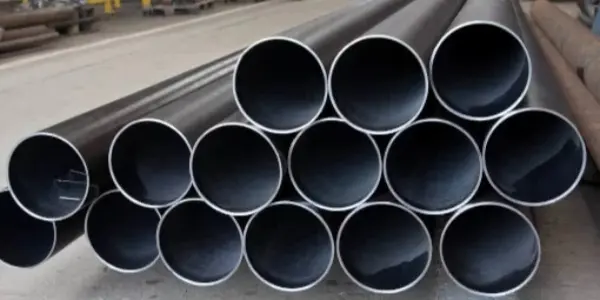

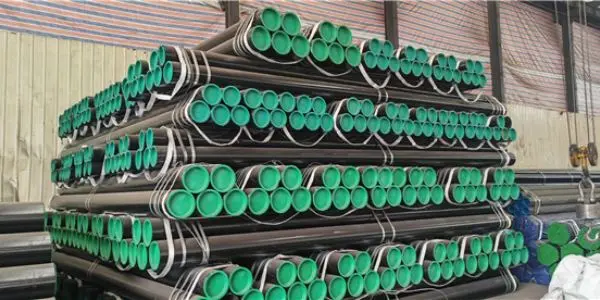

Seamless steel pipe

Product:Seamless steel tube, Line pipe, Boiler tube,Large Diameter Steel Pipe,Precision Pipe Machining Tubes

Production range:
Hot-rolled seamless pipe: outer diameter: Φ32-Φ356mm, wall thickness: 3-50mm; maximum length: 50m
Hot-expanded seamless pipe: outer diameter: Φ32-Φ356mm, wall thickness: 8-50mm
Cold-rolled seamless pipe: outer diameter: Φ20-Φ273mm, wall thickness: 1-32mm
Cold-drawn seamless pipe: outer diameter: Φ20-Φ273mm, wall thickness: 1-26mm; maximum length: 50m

VIEW PRODUCTS

Seamless Steel Pipe, CS SMLS Pipe, Seamless Carbon Steel Pipe, Seamless Pipe,Seamless Carbon Steel Pipe,Carbon Steel Seamless Pipe

Product Category

Oilfield Tubular Goods

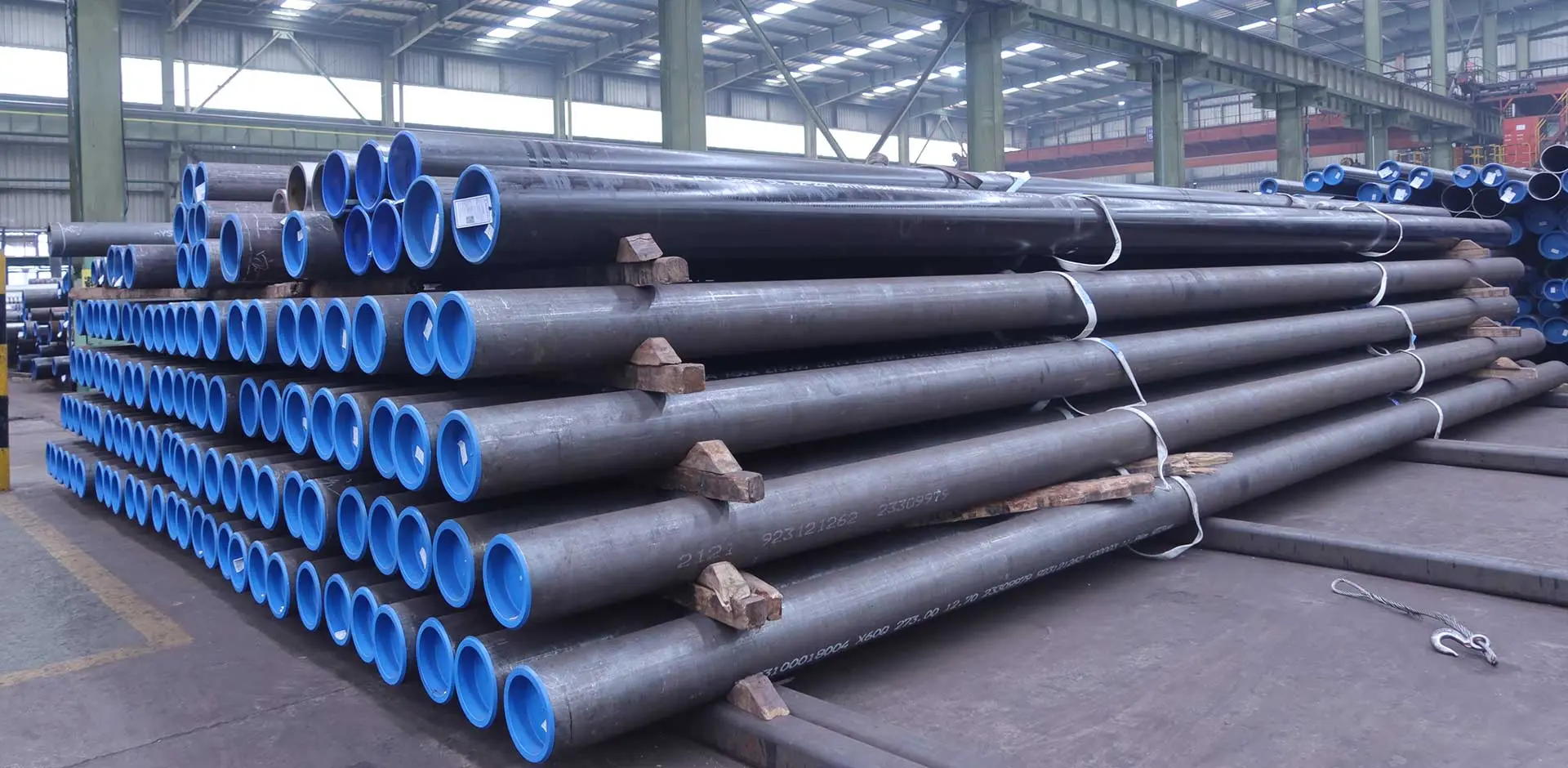

Oilfield tubular goods of Union Steel is a collection of seamless rolled products consisting of Tubing and Casing, Slotted Pipe, Drill Pipe and Drill Collar, Pup Joint and Coupling, which are useful in the oil and gas production activities. These OTCG products are manufactured according to the specifications set by API. OCTG can be either seamless or welded and are available in different sizes and lengths.

Tubing pipe size	OD: 1.050inch - 4-1/2 inch	Casing pipe size:	OD: 4-1/2inch - 20inch	Drill Pipe	API 5DP, 2-3/8’’~6-5/8’’, E75/X95/G105/S135.	Coupling	API 5CT, 1.9’’-20’’, K55/N80/L80/P110, STC/LTC /BTC
Standard	API 5CT H40, J55, K55, M65, L80-1, N80-1, N80Q, C90, P110, Q125
Tubing/Casing pipe end	P—plain-end, N—non-upset, with threaded and coupled, U—external-upset, with threaded and coupled, I—whole joint or other special threads / S—short round thread, L—long round thread, B—buttress thread
Drill Pipe	API SPEC 5DP E75, X95, G105, S135
Pipe Length	R1, R2, R3 or based on client’s requirements

VIEW PRODUCTS

Product Category

Alloy Steel Pipe

Nickel-Copper Alloy Pipe：Outer Diameter: 8-2500mm， (3/8"-100")，Wall Thickness: 0.3-150mm，(SCH10-XXS)

Alloy Steel Pipe：Outside Diameter:1/8'' ~ 26''；Wall Thickness: SCH 30, 30, 40, 60, 80, 120, 140, 160, XS, XXS, STD

Aluminum steel pipe：Outside Diameter: 1/2’’mm - 750mm；Thickness: ≥0.3mm

Titanium alloy pipe：Outer Diameter：6-2500mm， (3/8"-100")；Thickness：0.3-150mm，(SCH10-XXS)

Ends :Plain End, Beveled End, Thread End

Standard & Grade: ASTM A333, A335 P5/P9/P11/P22/P91, ASTM C70600, ASTM B280, ASTM B360, ASTM B111,EN1057, EN12375, BS EN22451, DIN 17175, JIS G3458, JIS H3300, ASME SB163, AS1432

Usage:In Petroleum, Aerospace, Chemical, Power, Boilers, Military Industry

VIEW PRODUCTS

Product Category

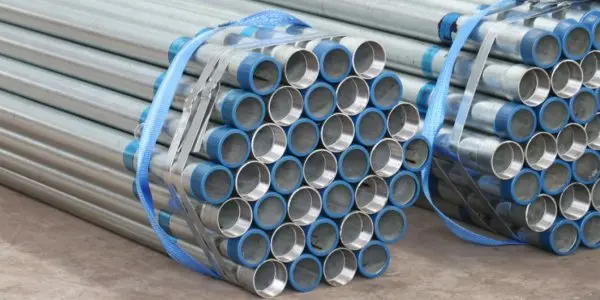

Coated Steel Pipe

Coated steel pipe means the pipe that is by the processing after the corrosion, which can effectively prevent or slow the steel pipe occurs in the course of transport and chemical or electrochemical reaction corrosion phenomena. Coated steel pipe can effectively prevent or slow down the corrosion of steel pipes to extend service life and reduce operating costs pipe. Union Steel is a supplier that can offer Galvanized Steel Pipe, FBE Coated Pipe, Epoxy Coated Pipe, 3LPE/3PE Coated Pipe and Concrete Coated Pipe.

Bare pipe	SSAW	LSAW	ERW	SMLS
Production Range	OD:219mm-3120mm WT: 3mm - 25mm	OD:16"-64" WT: max 50mm	OD: 1/8"-24" WT: max 26.5mm	OD: 1/8"-36" WT: 1.25mm - 50mm
Length	Random Length / Fixed Length / SRL / DRL
Usage	Mechanical Tubing,Liquid Transport Steel Pipe,General structure, mechanical structure,Transport liquid, gas, oil
Coating Type	Galvanized Coating /Fusion bond Epoxy Coating/External Asphalt Enamel Coal Tar Epoxy /3PE /2PE/FBE/2FBE/3PP Varnish Coating Bitumen Coating / Black Oil Coating,Cement coated as per customer's requirement

VIEW PRODUCTS

coated steel pipe,galvanized steel pipe,fbe coated pipe,epoxy coated pipe,3lpe coated pipe,concrete coated pipe

Product Category

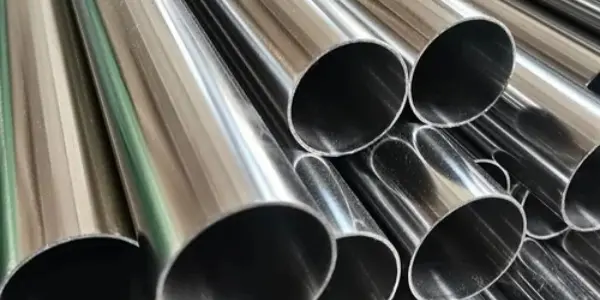

Stainless Steel Pipe

Stainless steel pipe is used for transporting liquids and gasses in a wide range of industries including mining, oil, natural gas, automotive, and aviation. Union Steel can provide Stainless Seamless Steel Pipe, Stainless Welded Steel Pipe, Stainless Steel Screen Pipe andStainless Hollow Sectionin standard sizes, or you can have it custom cut to your specifications.

ASTM	A312 TP 304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347 / 904L etc
Material	Duplex, Super Duplex, Monel, Nickel, Inconel, Hastelloy
Types	Round Seamless pipe, Square Seamless pipe, Rectangular Seamless pipe,Stainless Seamless Steel pipe,Stainless Steel Welded Pipe
Size	Upto 48” NB. (Seamless & Welded)
Wall Thickness	Sch. 5S to Sch. XXS
Steel Metal	Steel Coil,Steel Sheet,Steel Bar

VIEW PRODUCTS

stainless steel pipe,stainless seamless steel pipe,stainless welded steel pipe,stainless steel screen pipe,stainless hollow section

Product Category

Pipe Fittings

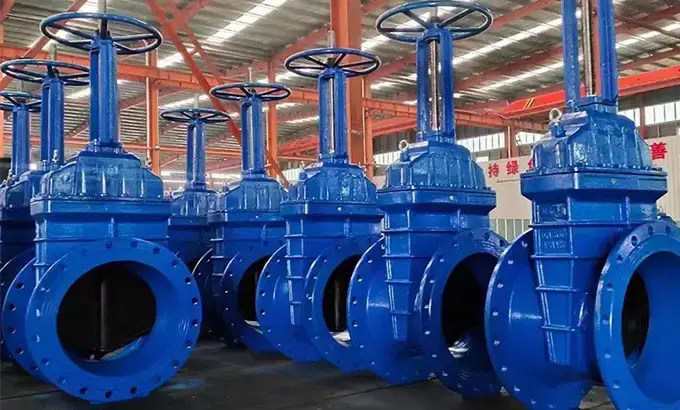

Pipe Fittings are defined as the piping components that help in pipe routing for directional changes, size changes, and branch connections. Union Steel is one of the top supplier of Flange, Elbow / Reducer / Tee / Cap / Bend and Valves, which are widely used in both the piping and plumbing industries.

Flange	1/2” - 120” ( DN 15 - DN 3000),Rating	150, 300, 400, 600, 900, 1500, 2500;
Elbow	Size Range	1/2” - 24” ( DN 21.3 - DN 610) for Seamless;26” - 96” ( DN 660 - DN 2438.4) for Welded.
Reducer	Size Range	1/2″ to 24″
Tee	Size Range	1/2” - 24” ( DN 21.3 - DN 610) for Seamless;26” - 72” ( DN 660 - DN 1828.8) for Welded.
Material	Carbon Steel ASTM A234 WPB,Alloy Steel ASTM A234 WP1, WP5, WP9, WP11, WP22,Stainless Steel ASTM A403 304/316
Type	Seamless / Welded

VIEW PRODUCTS

pipe fittings,plumbing fittings,flange,elbow,reducer,tee,cap,bend,valves

Product Category

Structural steel

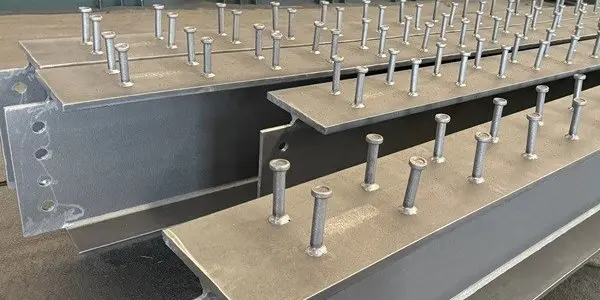

H Section:Size:100*50-700*300mm;Web Thickness:5-16mm;Web Width:50--300mm;Flange Thickness:4.5-23mm;Flange Width:50-400mm;Length:1-12m or as customer request

Channel Steel:Dimensions :50*37*4.5-400*104*14.5;75*40*3.8*7-152*76*6.4*9 ;140*60*7*10-200*75*8.5*11.5;Length:6m, 9m, 12m etc

Steel I Beam:Length: 1-12m, meet your requirements;Height : 100mm-320mm;Width : 37mm-132mm or as customer's request;Thickness：4.5mm-11.5mm

Steel Sheet Pile:Type: Z Type, U Type, Cold Formed, Hot Rolled;Standard: JIS A 5523 : 2012,JIS A 5528 : 2012,BS EN 10248-1 : 1996,BS EN 10248-2 : 1996,ASTM A572M/A572-12,ASTM A6/A6M-12

VIEW PRODUCTS

Steel Sheet Pile,Interlocking Sheet Pile，H Beam, I Beam, U Beam

Product Category

Value Added Products

Value added product has been enhanced with additional qualities that make it worth a higher price than the raw materials used to make it. It may be made more convenient, more attractive, more palatable, or easier to use than its raw ingredients. Union Steel can offer you Finned Tube, Pin Tube, Screen Pipe, Piling Pipe and Steel Sheet Pile.

VIEW PRODUCTS

value added products,finned tube,pin tube,screen pipe,piling pipe,steel sheet pile

Product Category

Steel Plate

Carbon steel Plate:Thickness:0.1mm-5000mm，etc Width : 0.5mm-2.5m，etc Length: 1m-12m,or customized

Stainless Steel Plate:Thickness:0.01~200mm ;Width:1000mm to 3500mm,etc Length:2000mm to 6000mm,etc

Aluminum Steel Plate:Thickness: 0.20mm - 500mm Width: 1000mm to 3800mm etc Length:1000mm - 12000mm

VIEW PRODUCTS

Carbon steel Plate,Mild Steel Sheet,Cold rolled steel plate ,Hot Rolled Carbon Steel Plate,High Carbon Steel Sheet

Product Category

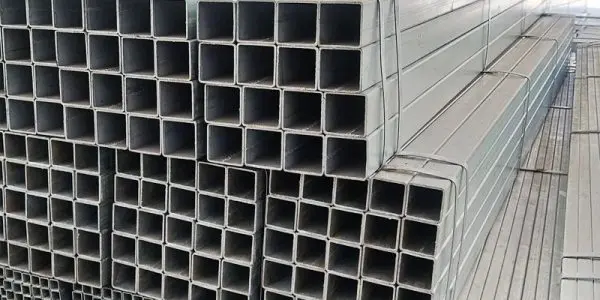

Hollow Section

Square Steel Tube：Size: OD: 10*10-1000*1000mm
Rectangular Tube：OD: 20mm*10mm ~ 400mm*300mm
Surface：Bare/Painted/Light Oiled/Galvanized/Zinc Coating/Primering/Powder Coat

VIEW PRODUCTS

Square Hollow Section, SHS, Rectangular Hollow Section, RHS, Carbon Steel Square Tube, Carbon Steel Rectangular Tube

LSAW Workshop

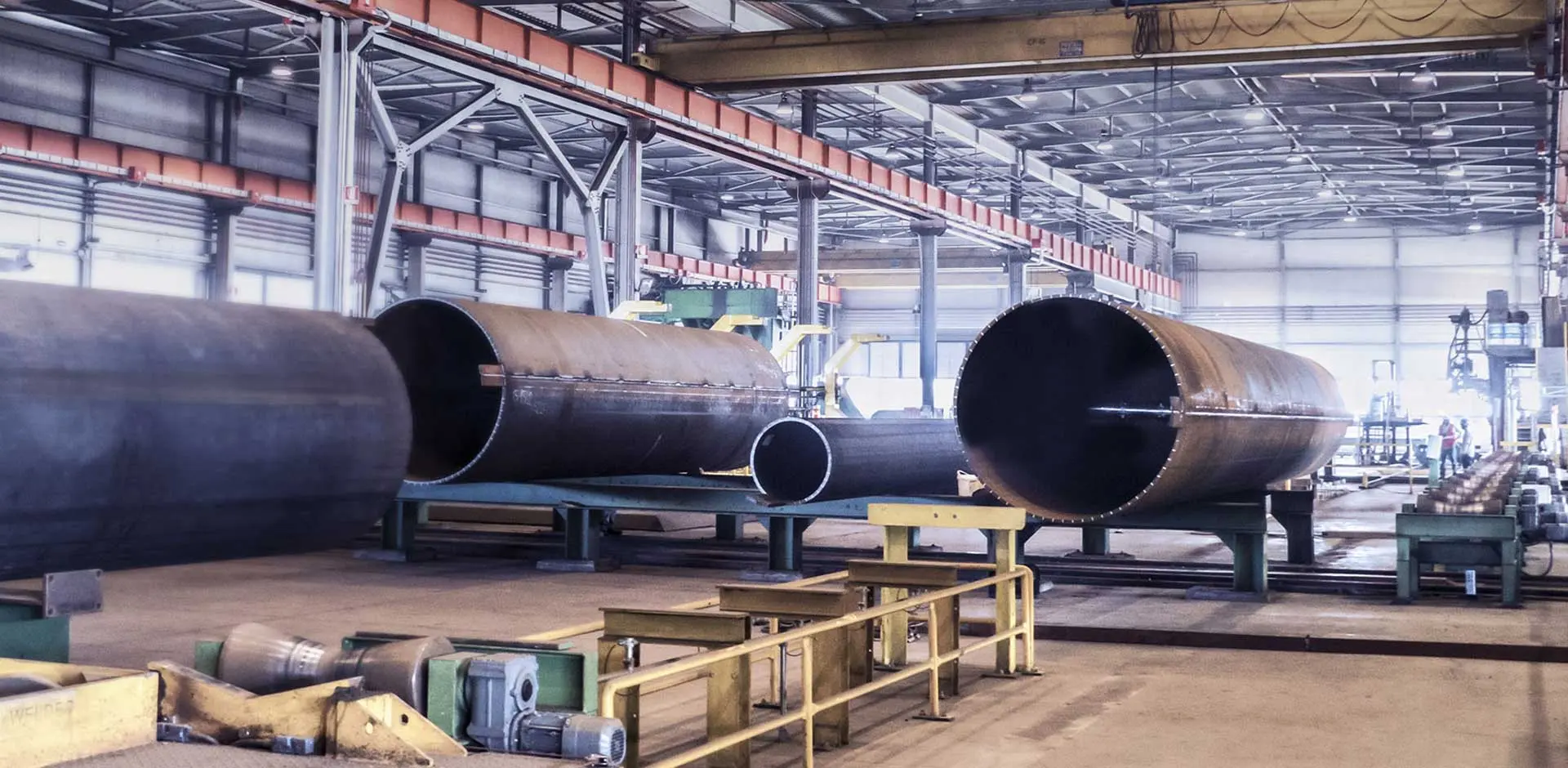

LSAW Workshop is used for pipe diameters from 16 to 64 inches. In the LSAW pipe workshop, the processing is done by cold forming of thick carbon steel plates. Among the forming processes available, Union Steel focuses on UOE and JCOE technologies. We supply equipment for all important process steps from sheet preparation to forming, welding, testing and finishing. Including not only the core machine, but also all upstream and downstream process steps required to produce large-diameter pipes. Our plants stand for medium to high production volumes of high product quality, flexible and cost-effective processes, precise dimensions and tight piping tolerances.

ERW Workshop

Supplying all core machines for ERW workshop, our products are renowned for their workmanship precision. The perfect combination of know-how, innovation, automation and digitalization ensures the production of high precision tubing, line pipe, casing, tubing and drill pipe as well as structural tubes with round, square and rectangular cross sections. These flexible factory lines can manufacture welded pipes with good processing quality and high-speed assembly accuracy. Covers product diameters up to 710 mm and wall thicknesses

SSAW Workshop

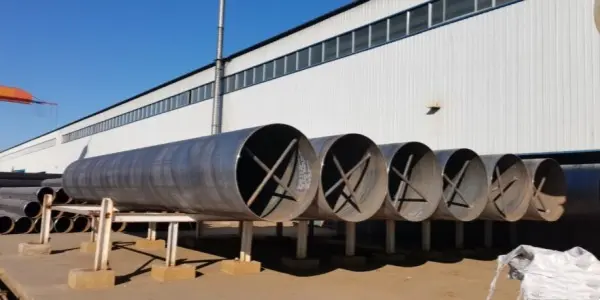

The SSAW workshop is used to produce spiral welded pipe between 15 and 100 inches in diameter. Spiral pipe is the strongest among welded pipes. The spiral welded pipe manufacturing process is not only one of the most efficient methods of producing steel pipes, but also offers a high degree of flexibility in the production range in terms of diameter and wall thickness. Our SSAW workshop can produce spiral tubing through the traditional 1st stage process as well as 2nd stage process (also known as off-line process). The final product is more than twice as resistant to extrusion as LSAW or ERW pipe.

SMLS Workshop

At present, Union Steel Industry Co.,Ltd owns 3 sets of hot rolled seamless steel pipe production line and 2 sets of hot expanded seamless steel pipe production line with annual production capacity of 200,000 tons, the size range is from 73mm to 630mm. Its physical and chemical labs cab conduct various physical and chemical tests and experiments for steel pipes, and are equipped with eddy current flaw detectors,leakage fault detection and ultrasonic crack detectors etc. For high, medium and low pressure seamless steel pipes and petroleum casing pipes with a full range of inspection measures, capable to meet various standard test and inspection requirements for steel pipes.
