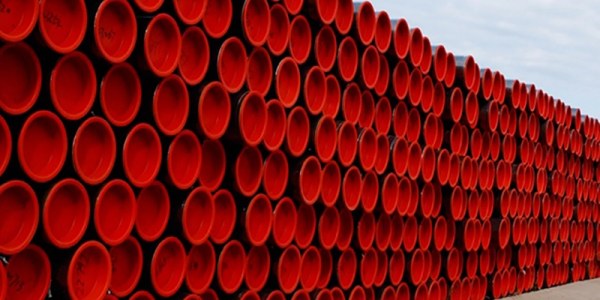

API 5L line pipe physical properties

Line pipe grade designations are defined by API Specification 5L (API Spec 5L), which is the global standard for steel line pipes used in oil and gas transmission systems.

1. API 5L Line Pipe Grades Overview

API 5L line pipes are classified into Grade A, Grade B, and X-series grades based on mechanical strength requirements:

- API 5L Grade A & Grade B
These are standard-strength carbon steel line pipes, commonly used for low to medium pressure pipeline applications.

- API 5L X-Series Grades (X42–X80)
Higher-strength grades are designated by the letter “X” followed by the specified minimum yield strength, expressed in ksi (kilopounds per square inch).

Example: API 5L X60 → Minimum yield strength = 60 ksi

These higher grades are widely used in long-distance, high-pressure oil and gas pipelines.

Refer to the API 5L grade table for a complete list of standard available grades and their mechanical properties.

 API 5L Line Pipe Physical Properties

2. Elongation Requirements in API 5L

API 5L elongation values are not fixed numbers.
They vary depending on:

Specimen cross-sectional area

Gauge length

The elongation values commonly quoted are based on a 0.2 square inch test specimen, which is the reference size used in the specification.

3. Mechanical Testing Scope and Limitations

For standard API 5L line pipe production:

Reduction of Area (RA) testing is typically not reported

Charpy V-Notch (CVN) impact testing is usually not required, unless specified for low-temperature service

Engineering Implication

Because of these omissions:

API 5L pipe cannot be directly used as pressure-containing body material above 36 ksi yield strength for API Spec 6A equipment

Additional testing is required:

Reduction of Area (RA) testing

Charpy V-Notch (CVN) testing for low-temperature applications

4. Important Caution: API 5L vs ASTM A106

Do NOT assume ASTM A106 Grade A or B pipes are interchangeable with API 5L Grade A or B.

Although the two specifications overlap in chemistry and mechanical ranges:

ASTM A106 and API 5L are different standards

Manufacturing, testing, and acceptance criteria vary

A pipe may meet one specification but not necessarily both

Always verify compatibility by carefully reviewing the Mill Test Report (MTR / MTC).

Key Takeaways for Engineers & Buyers

API 5L grade designations are based on minimum yield strength (ksi)

X-series grades provide higher strength for demanding pipeline conditions

Standard API 5L testing may be insufficient for API 6A pressure equipment

ASTM A106 and API 5L pipes are not automatically interchangeable

FAQ

Q1: What does “X60” mean in API 5L pipe grades?
A: It indicates a minimum yield strength of 60 ksi according to API Spec 5L.

Q2: Is API 5L Grade B the same as ASTM A106 Grade B?
A: No. They are different specifications and must be verified via mill test reports.

Q3: Does API 5L require Charpy impact testing?
A: Not by default. CVN testing is required only when specified, especially for low-temperature service.

Q4: Can API 5L pipe be used for API 6A equipment bodies?
A: Not above 36 ksi yield strength without additional RA and CVN testing.

Q5: How is elongation defined in API 5L?
A: Elongation varies with specimen size; published values usually reference a 0.2 sq. in. specimen.
