Stainless steel reinforced spiral welded pipe is a lightweight, high-strength piping solution widely used in ventilation systems, dust collection systems, industrial exhaust systems, bulk material conveying, and mining projects. By adding external reinforcing stiffeners to the pipe body, manufacturers can significantly improve ring stiffness and structural stability while reducing overall material consumption.
Compared with conventional thick-wall stainless steel pipes, reinforced spiral welded pipes offer an excellent balance between strength, weight, and cost, making them a popular choice for large-diameter low-pressure transportation systems.
What Is Stainless Steel Reinforced Spiral Welded Pipe?

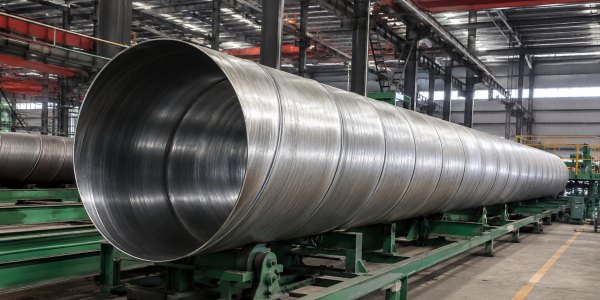

Stainless steel reinforced spiral welded pipe is manufactured by spiral forming stainless steel strip or coil into a circular pipe and welding the seam continuously. External reinforcing ribs (stiffeners) are then added to enhance the pipe's resistance to deformation.
The design provides:
High structural rigidity
Lightweight construction
Large-diameter capability
Excellent corrosion resistance
Easy installation
Lower transportation costs
Because the reinforcement carries part of the structural load, thinner pipe walls can be used without sacrificing strength.
Main Features of Reinforced Spiral Welded Pipe
Lightweight Structure
Compared with conventional thick-wall stainless steel pipes, reinforced spiral pipes achieve similar stiffness with less material consumption.
Improved Ring Stiffness
External stiffeners increase resistance to:
Ovalization
Buckling
External loads
Vibration
Corrosion Resistance
Manufactured from stainless steel grades such as 304, 316L, and 2205, these pipes perform well in humid, dusty, and corrosive environments.
Large Diameter Availability
The spiral welding process allows economical production of large-diameter pipes that would be difficult or expensive to manufacture using seamless processes.
Stainless Steel Reinforced Spiral Welded Pipe Specification Table
According to the specification sheet, the following dimensions are available.
Reinforced Spiral Welded Pipe Dimensions
|
Size (mm)
|
Weight (kg/m)
|
Thickness (mm)
|
|
323.9
|
12.7
|
1.5
|
|
355.6
|
14.2
|
1.5
|
|
406.4
|
16.2
|
1.5
|
|
457.4
|
18.7
|
1.5
|
|
508
|
27.6
|
2.0
|
|
559
|
30.4
|
2.0
|
|
610
|
42.0
|
2.5
|
|
660
|
45.5
|
2.5
|
|
711
|
49.0
|
2.5
|
|
762
|
64.2
|
3.0
|
|
813
|
67.6
|
3.0
|
|
864
|
71.9
|
3.0
|
|
914
|
89.5
|
3.5
|
|
1016
|
99.5
|
3.5
|
|
1067
|
120.9
|
4.0
|
|
1118
|
126.7
|
4.0
|
|
1168
|
132.4
|
4.0
|
|
1219
|
138.2
|
4.0
|
Reinforcement Structure Parameters
The specification sheet provides the following reinforcement requirements.
|
Pipe Thickness (mm)
|
Minimum Stiffener Height (mm)
|
|
1.5
|
≥ 13
|
|
2.0
|
≥ 15
|
|
2.5
|
≥ 18
|
|
3.0
|
≥ 20
|
|
3.5
|
≥ 23
|
|
4.0
|
≥ 27
|
Stiffener Distance
|
Parameter
|
Value
|
|
Stiffener Spacing
|
250 mm
|
The reinforcement design improves pipe rigidity while maintaining a relatively low overall weight.
Common Stainless Steel Grades for Reinforced Spiral Pipe
The specification includes several commonly used stainless steel grades according to GB and ASTM standards.
Austenitic Stainless Steel Grades
|
Grade
|
Equivalent
|
Main Features
|
|
304
|
S30408
|
General corrosion resistance
|
|
304L
|
S30403
|
Excellent weldability
|
|
316L
|
S31603
|
Superior chloride resistance
|
|
310S
|
S31008
|
High-temperature resistance
|
|
347
|
S34780
|
Stabilized stainless steel
|
Duplex Stainless Steel Grades
|
Grade
|
UNS Number
|
Main Features
|
|
2205
|
S32205 / S31803
|
High strength and corrosion resistance
|
|
2507
|
S32750
|
Excellent pitting and crevice corrosion resistance
|
Duplex stainless steels provide approximately twice the yield strength of conventional 304 stainless steel while maintaining excellent corrosion resistance.
Chemical Composition of Common Stainless Steel Grades
304 Stainless Steel
|
Element
|
Content (%)
|
|
C
|
≤0.08
|
|
Si
|
≤0.75
|
|
Mn
|
≤2.00
|
|
P
|
≤0.045
|
|
S
|
≤0.030
|
|
Ni
|
8.0–10.5
|
|
Cr
|
17.5–19.5
|
304L Stainless Steel
|
Element
|
Content (%)
|
|
C
|
≤0.03
|
|
Si
|
≤0.75
|
|
Mn
|
≤2.00
|
|
P
|
≤0.045
|
|
S
|
≤0.030
|
|
Ni
|
8.0–12.0
|
|
Cr
|
17.5–19.5
|
316L Stainless Steel
|
Element
|
Content (%)
|
|
C
|
≤0.03
|
|
Si
|
≤0.75
|
|
Mn
|
≤2.00
|
|
P
|
≤0.045
|
|
S
|
≤0.030
|
|
Ni
|
10.0–14.0
|
|
Cr
|
16.0–18.0
|
|
Mo
|
2.0–3.0
|
2205 Duplex Stainless Steel
|
Element
|
Content (%)
|
|
C
|
≤0.03
|
|
Si
|
≤1.00
|
|
Mn
|
≤2.00
|
|
P
|
≤0.030
|
|
S
|
≤0.020
|
|
Ni
|
4.5–6.5
|
|
Cr
|
22.0–23.0
|
|
Mo
|
3.0–3.5
|
|
N
|
0.14–0.20
|
2507 Super Duplex Stainless Steel
|
Element
|
Content (%)
|
|
C
|
≤0.03
|
|
Si
|
≤0.80
|
|
Mn
|
≤1.20
|
|
P
|
≤0.035
|
|
S
|
≤0.020
|
|
Ni
|
6.0–8.0
|
|
Cr
|
24.0–26.0
|
|
Mo
|
3.0–5.0
|
|
N
|
0.24–0.32
|
Applications of Stainless Steel Reinforced Spiral Welded Pipe
According to the specification sheet, the primary application is:
Coal Mining Industry
Used for:
Mine ventilation systems
Dust extraction systems
Exhaust air pipelines
Material conveying systems
In addition, reinforced spiral stainless steel pipes are widely used in:
Industrial Ventilation
Factory ventilation
Dust collection systems
Air handling systems
Environmental Protection Projects
Flue gas transportation
Waste gas treatment
Industrial emission systems
Bulk Material Handling
Powder transportation
Grain conveying
Cement transport systems
Power and Metallurgical Industries
Air ducts
Low-pressure conveying pipelines
Industrial exhaust systems
Advantages Compared with Conventional Stainless Steel Pipe
|
Feature
|
Reinforced Spiral Pipe
|
Conventional Pipe
|
|
Weight
|
Lower
|
Higher
|
|
Material Consumption
|
Lower
|
Higher
|
|
Large Diameter Production
|
Excellent
|
Limited
|
|
Structural Rigidity
|
Excellent
|
Moderate
|
|
Transportation Cost
|
Lower
|
Higher
|
|
Installation Efficiency
|
Higher
|
Moderate
|
How to Select the Right Reinforced Spiral Pipe
Consider Operating Conditions
Evaluate:
Internal pressure
External loads
Temperature
Corrosion environment
Select Appropriate Material Grade
304 for general industrial service
316L for corrosive environments
2205 for higher strength requirements
2507 for severe corrosion conditions
Verify Reinforcement Design
Confirm:
Pipe thickness
Stiffener height
Stiffener spacing
Structural requirements
FAQ
1. What is a reinforced spiral welded pipe?
It is a spiral welded pipe with external reinforcing ribs that improve stiffness and structural strength.
2. Why use reinforced spiral pipe instead of thick-wall pipe?
Reinforced pipes provide similar rigidity with lower weight and lower material costs.
3. Which stainless steel grades are commonly used?
304, 304L, 316L, 2205, and 2507 are the most common materials.
4. What is the typical stiffener spacing?
According to the specification, the stiffener spacing is 250 mm.
5. What industries use reinforced spiral stainless steel pipes?
Coal mining, industrial ventilation, environmental protection, power generation, and bulk material transportation.
