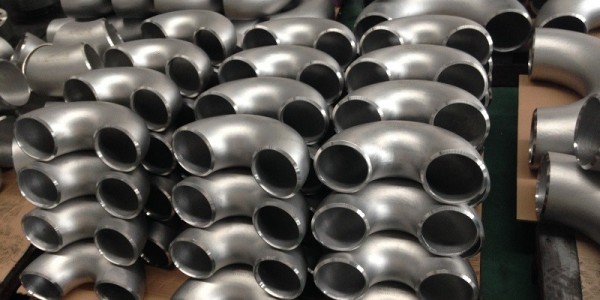

What are the installation tips for stainless steel 90 degree elbows?

Quick Answer

Installing stainless steel 90 degree elbows requires proper alignment, correct welding or connection methods, clean surfaces, and adequate support to prevent stress concentration, leakage, and corrosion.

Why Proper Installation Matters

Stainless steel 90 degree elbows are widely used in piping systems to change flow direction while maintaining structural integrity and corrosion resistance. However, improper installation can lead to misalignment, stress concentration, leakage, and even premature failure of the pipeline.

In industries such as oil & gas, chemical processing, and construction, correct installation is essential to ensure long-term performance, safety, and system efficiency.

Key Installation Tips for Stainless Steel 90 Degree Elbows

In practice, installation should focus on accuracy, cleanliness, and stress control rather than simply connecting components.

Important installation tips include:

- Ensure accurate alignment:
The elbow must match the pipeline axis precisely to avoid additional stress or deformation during operation

- Select the correct connection method:
Choose welding, threaded, or flange connection based on system pressure and application requirements

- Control welding quality:
Use appropriate welding techniques (such as TIG welding) and avoid overheating to prevent sensitization and corrosion

- Clean the surface before installation:
Remove oil, dust, and oxide layers to ensure proper sealing and prevent contamination

- Avoid forced installation:
Do not force the elbow into position, as this can cause internal stress and future cracking

- Provide proper support:
Install pipe supports near the elbow to reduce vibration and load concentration

Common Installation Mistakes to Avoid

Even with high-quality stainless steel elbows, improper handling during installation can significantly reduce performance.

Typical mistakes include:

Misalignment between pipe and elbow

Poor welding leading to weak joints

Ignoring thermal expansion allowances

Lack of support causing vibration damage

Installing in contaminated or corrosive environments without protection

Additional Practical Considerations

In real engineering scenarios, installation conditions vary depending on system complexity. For high-pressure or high-temperature systems, stricter standards and inspection procedures are required. Post-installation inspection, including visual checks and pressure testing, is recommended to ensure leak-free operation.

In corrosive or marine environments, additional protective measures such as passivation or surface treatment may further enhance the service life of stainless steel elbows.

Conclusion

Proper installation of stainless steel 90 degree elbows is critical for ensuring pipeline safety, durability, and efficiency. By focusing on alignment, welding quality, cleanliness, and support, common failures such as leakage and stress cracking can be effectively avoided. A well-installed elbow not only improves system performance but also reduces long-term maintenance costs.

Experience from Union Steel Industry

At Union Steel Industry, long-term project experience across oil & gas, construction, and industrial piping systems has shown that most pipeline failures are not caused by material defects, but by improper installation practices.

In real projects, issues such as misalignment, insufficient welding control, and lack of support are among the most common causes of leakage and early-stage corrosion. By standardizing installation procedures—especially in alignment control, weld inspection, and surface preparation—project reliability can be significantly improved.

Union Steel Industry recommends combining high-quality stainless steel fittings with strict installation standards to achieve optimal performance and longer service life in demanding environments.

FAQ

1. What is the most important factor when installing a 90 degree elbow?
Accurate alignment to prevent stress and leakage.

2. Which welding method is best for stainless steel elbows?
TIG welding is commonly preferred for its precision and clean finish.

3. Do stainless steel elbows need cleaning before installation?
Yes, cleaning removes contaminants and ensures proper sealing.

4. How to prevent stress on pipe elbows?
Use proper alignment and install supports near the elbow.

5. Can stainless steel elbows be used in corrosive environments?
Yes, but additional protection like passivation is recommended.
